Panel 5 zone

■ Features
• Conventional type
• Alarm Delay Function
Heat Detector: 20sec.
Smoke Detector: 60sec
• Supervision of detector lines and fault conditions
• Energy saving technology for its running cost.
• Light body (Using Flame retardant ACS resin)
• High reliability minimizes maintenance cost.
• Re-Activation System
• Surge Absorber
• Insert-Style wiring terminal
• Built-in Backup battery

Brochure (1.2MB)

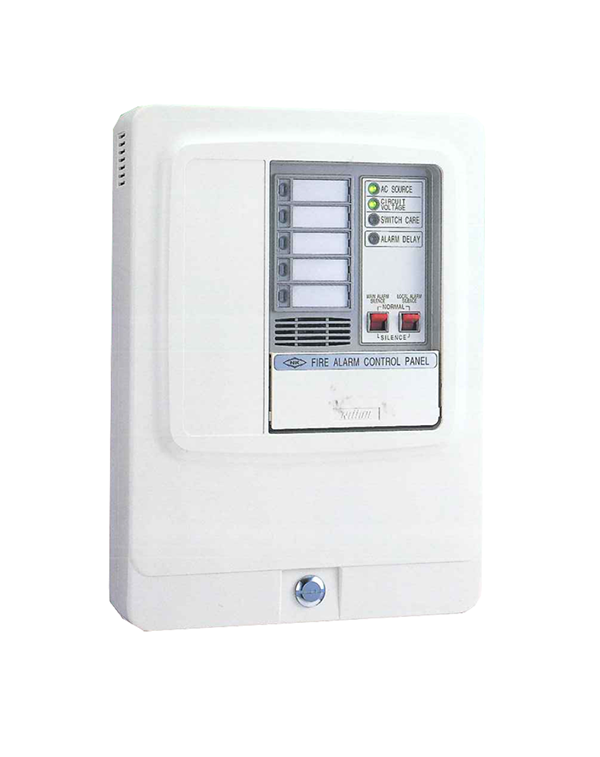

The 2PD1-5L is a conventional fire alarm panel with a stylish wall-mount design supplied in 5 zone format. All detector circuits will be indicated with lighting red LEDs in alarm conditions and flushing in open circuit fault conditions. Slide-in paper labels are included for clear zone identification. The alarm panel has an alarm delay function on detector circuits to reduce false alarms, including a delay ON/OFF function.
2PD1-5L utilizes the latest modern technology to achieve a compact, sophisticated and highly reliable product. This panel is suitable for a wide range of environmental risks in industrial and commercial applications. E.g. Shops, offices, warehouses, guest houses, post-offices, mobile phone stations, etc.
2PD1-5L is provided with surge absorbers on the primary and secondary sides of the transformer to protect its circuit from the lightning and electricalsurge.
