Upright & Pendent

Sprinkler Identi cation Numbers (SINs)

TY315 . . . . . . Upright 5.6K, 1/2 ̋ NPT

TY325 . . . . . Pendent 5.6K, 1/2 ̋ NPT

Technical Data

Approvals

UL and C-UL Listed
FM, LPCB, and VdS Approved CE Certified

Sprinklers with Polyester Finish are UL and C-UL Listed as Corrosion- Resistant Sprinklers.

Maximum Working Pressure

175 psi (12.1 bar) 250 psi (17.2 bar)*

* The maximum working pressure of 250 psi (17.2 bar) only applies to the listing by Un- derwriters Laboratories, Inc. (UL).

Discharge Coefficient

K = 5.6 GPM/psi1/2 (80,6 LPM/bar1/2)

Temperature Ratings

135°F (57°C)

155°F (68°C)

175°F (79°C)

200°F (93°C)

286°F (141°C)

360°F (182°C)†

† UL, C-UL, and VdS Approved only

Finishes

Sprinkler: Refer to Table A

Recessed Escutcheon: White Coated, Chrome Plated, or Brass Plated

Physical Characteristics

Frame…………………….Bronze

Button……………………Brass/Copper

Sealing Assembly…….Stainless Steel w/TEFLON

Bulb ………………………Glass

Compression Screw…Bronze

Deflector………………..Bronze



Brochure (0.45MB)

Description

The TYCO Series TY-B, 5.6 K-factor, Upright (TY315) and Pendent (TY325) Sprinklers described in this data sheet are standard response, standard cover- age, decorative 5 mm glass bulb type spray sprinklers designed for use in light, ordinary, or extra hazard, com- mercial occupancies such as banks, hotels, shopping malls, factories, re neries, and chemical plants.

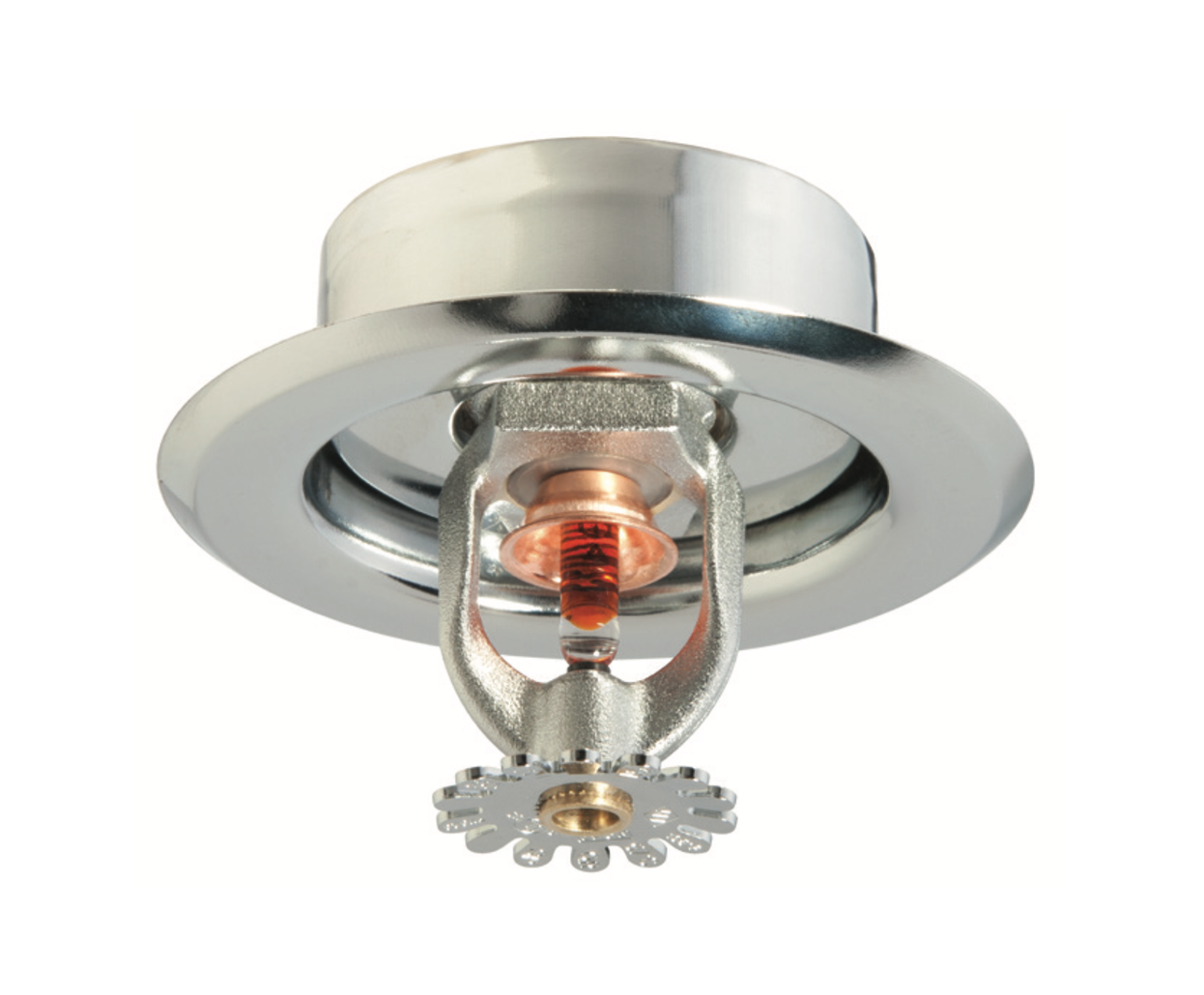

The recessed version of the Series TY-B Pendent Sprinkler, where appli- cable, is intended for use in areas with a nished ceiling. This recessed pendent sprinkler uses one of the following:

  • A two-piece Style 15 Recessed Escutcheon with recessed adjust- ment up to 5/8 inch (15,9 mm) from the ush pendent position.
  • A two-piece Style 20 Recessed Escutcheon with recessed adjust- ment up to 1/2 inch (12,7 mm) from the ush pendent position.

The adjustment provided by the Recessed Escutcheon reduces the accuracy to which the xed pipe drops to the sprinklers must be cut.

Intermediate level versions of Series TY-B Sprinklers are described in Technical Data Sheet TFP352. Sprinkler guards and shields are described in Technical Data Sheet TFP780.
