Master Control Fire Alarm (MCFA)

Fire Alarm Control
• One driver card capable of 2 loops is equipped as standard
• NFU-7000 has 3 capability of driver card storage (max 6 loops), NFU-7000-L has 7 capability (max 14 loops)
• One loop supports 254 addresses which can be wired in Class A (Style 6 or 7) or Class B (Style 4)
• Use of shielded cable is not required for SLC loops
• Modular design
• Four Class A/B (Style Z/Y) Notification Appliance Circuits rated at 1.7 Amps each
• One Auxiliary power supply, rated 1.7 Amps at 24VDC in addition to one resettable 4-wire power supply
• Large 16 line x 40 character Back-lit LCD Display with user friendly menu
• Correlatable Switch Inputs which allow for multifunctional outputs
• Four Status Queues with selector switches and LEDs for Alarm, Supervisory, Trouble and Monitor
• Auxiliary relay contacts for Common Alarm, Common Supervisory and Common Trouble
• RS-232 port for remote system printer
• Two Event History Logs comprised of a 1000 event alarm history log for alarm related events and a 5000 event log for all events
• Supports three configuration files (current, previous and next configuration) with “hot swap” support
• Supports Conventional Hardwire Adder Modules
• Built-in One Man Walk Test operation
• Provides drift compensation for Photoelectric Smoke Detectors
• Capability to adjust Intelligent Smoke Detector sensitivity levels
• Real time 3D graphical monitoring and control using Nittan’s NFU-Graphic-monitor
• BACnet support
• Supports Boolean logic functions
• Built-in Ethernet port
• UL listed for Smoke Control
• Manual Control Function
• Input Simulation Function
• Multiple group bypass function with built-in false alarm prevention technology

-Network Node Bypass
-Node Outputs Bypass
-Input Zone Bypass
-Relay Disconnect
-Device/Circuit Bypass

Network Features
• Up to 63 panels
• Peer-to-peer network communications
• Mutual surveillance / 2 way control available
• Class A (Style 6 or 7) or Class B (Style 4) wiring configuration
• Arcnet Network Communications protocol
• Supports copper and/or fiber optic network cable

Brochure (1.3MB)

Description

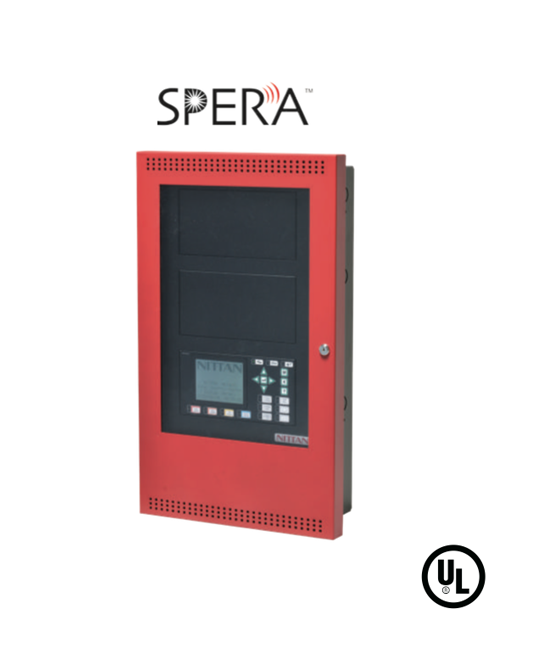

Nittan’s SPERA NFU-7000 Network Fire Alarm Control Panel offers modular components to meet a wide variety of applications. Designed for peer-to-peer network communications, the NFU-7000 allows for a maximum of 63 nodes, while providing reliability, exibility and expandability.
The NFU-7000 EV protocol is based on the platform which acquired reliabilities in European and Marine markets. This panel has a loop driver card which is capable of driving 2 loops. A Nittan EV protocol supports 254 addresses per loop. Owing to the contribution of expandability, addressable detectors and modules are available to be installed without constraint of address number allocation.
In addition, the base panel includes four Class A/B
(Style Z/Y) Noti cation Appliance Circuits rated at 1.7 Amps each and a large 16 x 40 back-lit alphanumeric LCD display.
NFU-7000 panel can see other panels’ condition of the
same network. Each panel can be con gured by any panel through the network using SPERA con gurator.
The network interface module allows the panels to communicate on a peer-to-peer network via an industry standard ARCNET protocol. The network capabilities allow site speci c customization and the ability to meet local and national requirements.
